Cable to Flat Metal
Product Information
Product Variations
| Product No. | Material | Hardware | Box Qty. | Approx. Box Wt. (lbs.) | Documents | |
|---|---|---|---|---|---|---|
| A213 | Aluminum | Standard | 10 | 1.75 |
|
|
| 213 | Bronze | Standard | 10 | 4.5 |
|
|
| 213T | Tinned Bronze | Standard | 10 | 4.5 |
|
|
| 213TTP | Tinned Bronze | Tamper Proof | 10 | 4.5 |
|

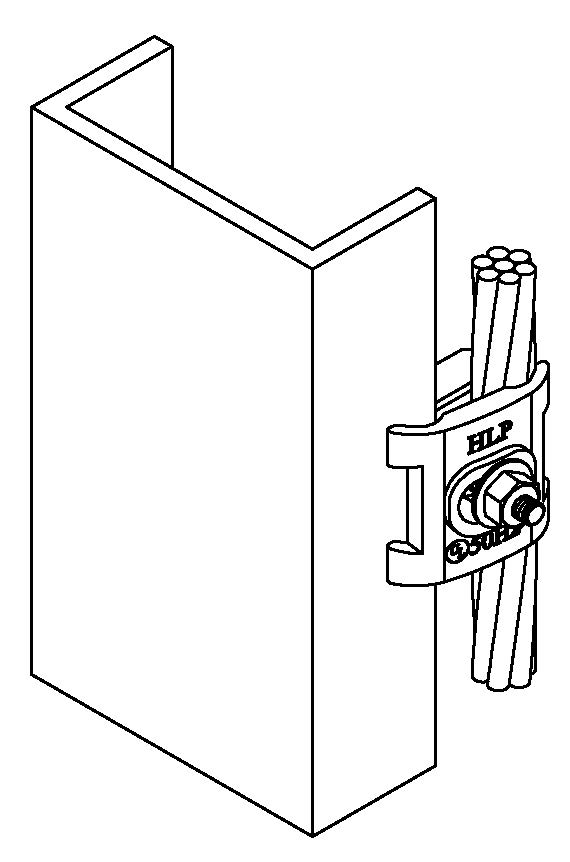

• Approximately 1-3/4" x 2" two piece, one bolt connector connects all lightning conductor cables through 37/64" diameter to flat metal objects up to 1/2" thickness such as steel ladders, small I-beams, channel, etc.
• 5/16" x 1-1/4" stainless steel cap screw with flat washer included.
• #213TTP - Used in high theft areas. 5/16" x 1-1/4" stainless steel tamper proof hardware included.
• #213 & #213T - Recommended installation tool - 1/2" socket wrench, end wrench or nut driver.
• All are suitable for direct burial in earth & concrete except #A213.
