Bi-Metal 6" Straight Splice
Product Information
Product Variations
| Product No. | Material | Box Qty. | Approx. Box Wt. (lbs.) | Documents | |
|---|---|---|---|---|---|
| 211XL | Aluminum / Brass | 10 | 7 |
|

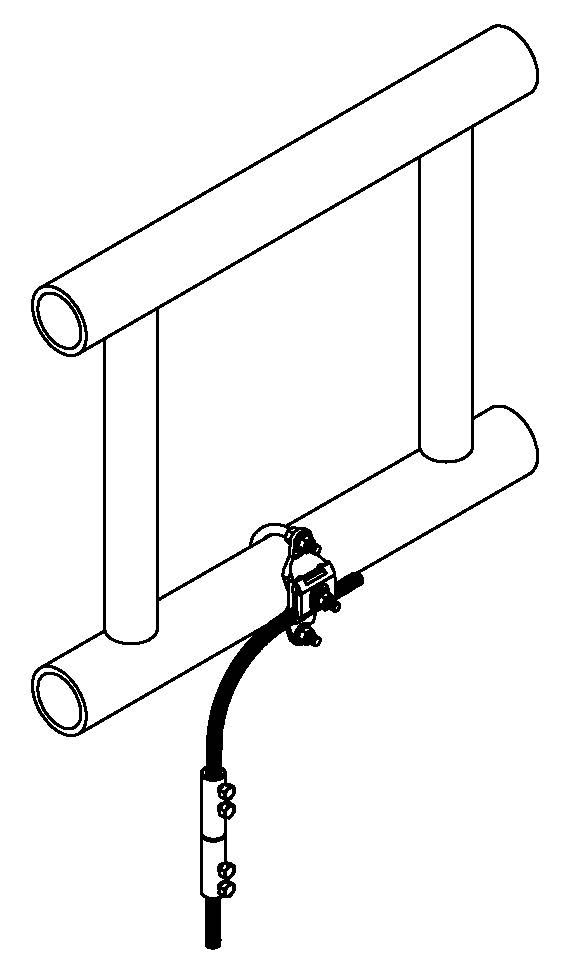

• 6" long, four bolt bi-metal connector provides a non-electrolytic connection between copper and aluminum conductors.
• Accepts all main size lightning conductors up to .75" diameter.
• Four 5/16" x 1/2" hex head stainless steel cap screws assure a positive electrical connection.
• Recommended installation tool - 1/2" socket wrench, end wrench or nut driver.
