Product Image
225 Series
Right Angle to Straight Connection
Product Information
Product Variations
| Product No. | Upper Connection Material | Lower Connection Material | Riser Bar Length | Documents | |
|---|---|---|---|---|---|
| A2256 | Aluminum | Aluminum | 6" |
|
|
| A22512 | Aluminum | Aluminum | 12" |
|
|
| A22518 | Aluminum | Aluminum | 18" |
|
|
| 225BM6 | Aluminum | Brass | 6" |
|
|
| 225BM12 | Aluminum | Brass | 12" |
|
|
| 225BM18 | Aluminum | Brass | 18" |
|
|
| 225-6 | Bronze | Brass | 6" |
|
|
| 225-12 | Bronze | Brass | 12" |
|
|
| 225-18 | Bronze | Brass | 18" |
|
|
| A225BM18 | Bronze | Aluminum | 18" |
|

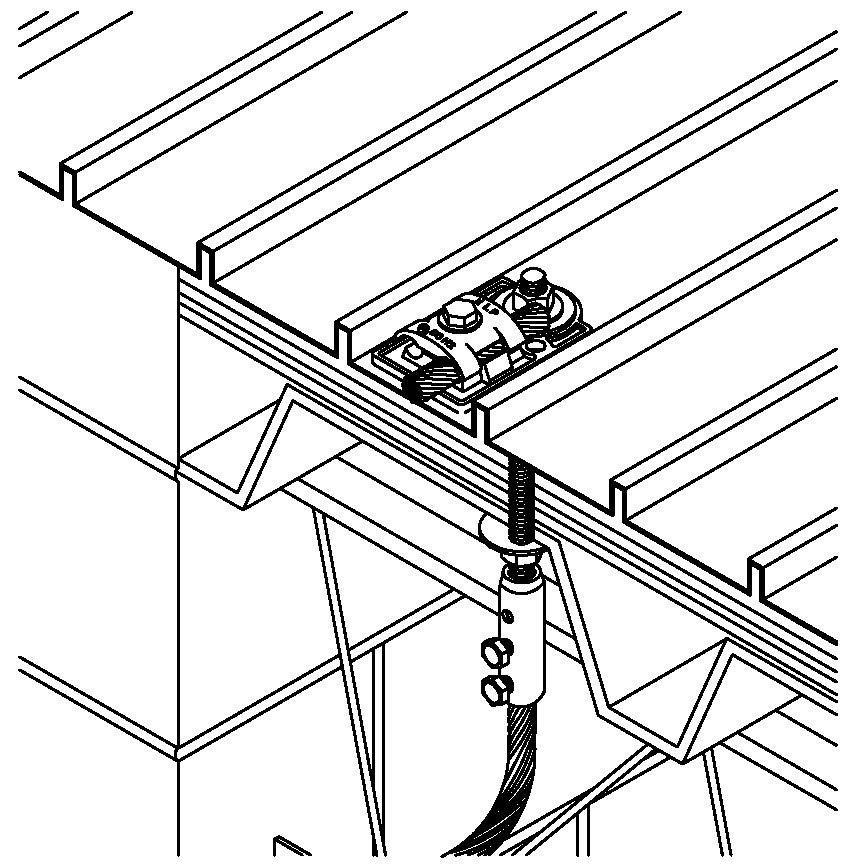

• Thru-roof or thru-wall connectors are used when making roof or wall penetrations because of the difficulty of sealing stranded lightning conductor cables.
• Features include 1/2" diameter threaded rod, neoprene sealing washers and stainless steel jam nuts to assure a watertight installation.
• Fits all main size conductors up to 9/16" diameter.
• Other configurations available. Please contact factory for more information.
